Lesson Module A-18: Liquid Nitrogen Distribution System - pg 2

Objective

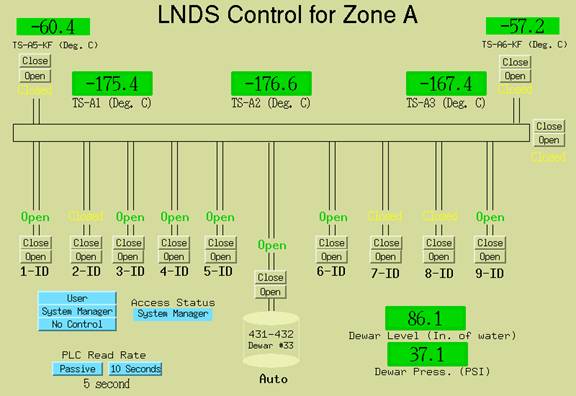

This is a graphical representation of the LNDS taken from EPICS. There are four such modules joined by interconnect valves. Each module has a temperature sensor at the center and at each end.
