The major thrust of the 7-BM beamline is the application of synchrotron radiation tools to examine complex fluid flowfields. Three major techniques are applied: radiography, phase contrast imaging, and x-ray fluorescence spectroscopy. While optical techniques are often ideally suited to the study of fluid flowfields, there are certain flowfields for which optical diagnostics have significant challenges. These include:

  • Multiphase flows: Visible light interacts strongly with phase boundaries. This leads to strong refraction, scattering, and attenuation of light. These effects hinder quantitative measurements of dense multiphase flowfields.
  • Opaque media.
  • Flows with strong refractive effects.
  • Luminous flames: The strong light emission from sooting flames can hinder certain optical diagnostics.

X-ray radiography makes use of the fact that at low to moderate x-ray energies (<10 keV), the dominant interaction of x-rays with materials is photoelectric absorption. As photoelectric absorption is generally governed by interactions with the core shell electrons, the absorption is relatively insensitive to physical phase or chemical bonding (except near absorption edges). As such, a simple Beer-Lambert law approach can be used to quantitatively determine the projected density of material in an x-ray beam.

While radiography can be performed using laboratory x-ray sources, the use of a synchrotron source provides several advantages over laboratory sources. The overall flux from synchrotron sources is much greater than from laboratory sources. By creating a monochromatic beam, the synchrotron radiography measurements are no longer subject to beam hardening effects, which are present in measurements with polychromatic laboratory sources. The lack of beam hardening greatly simplifies data analysis. Finally, the collimated nature of synchrotron x-rays allows for efficient focusing of the x-rays.

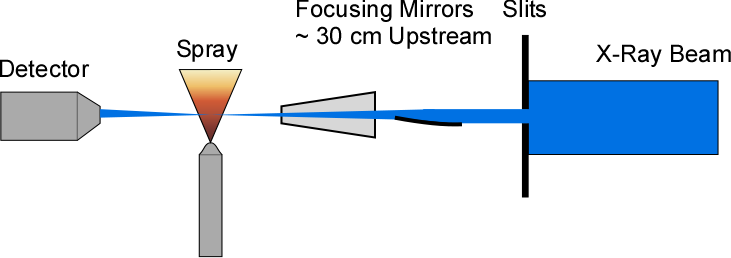

The high-intensity, monochromatic, focused beam available at 7-BM has been used to perform high-resolution, quantitative, time-resolved measurements of a wide variety of multiphase flowfields. These have included diesel injection, gasoline injection, cavitation, aerated liquid sprays, and rocket injection.

Phase Contrast Imaging

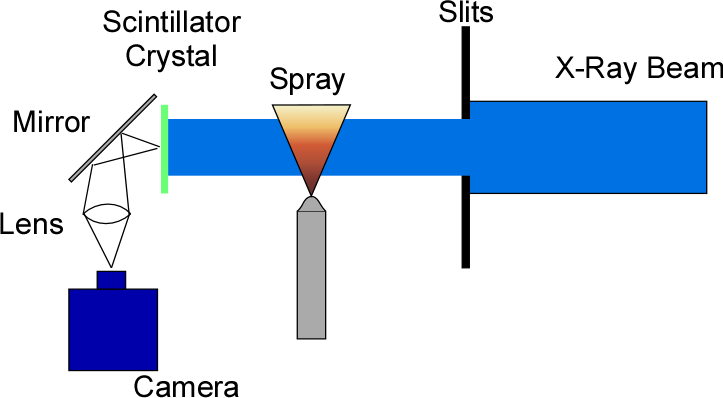

While raster scan radiography can provide high-speed, quantitative measurements of x-ray absorption of samples, data are collected only one point at a time.  Using phase contrast imaging, on the other hand, allows one to view the two-dimensional morphology of a sample at once.  Such measurements require much higher flux for a given time resolution than raster scan measurements, since the flux is spread over a much wider area.  For these measurements, the bending magnet white beam is used.  The white beam provides the maximum possible flux from the source and the least disturbance of the image from optical aberrations, providing clear images.

A challenge of phase contrast imaging is that, in addition to absorption, diffractive effects at phase boundaries (i.e., the surface of a droplet or bubble) causes a distortion of the light field.  While these phase effects can be removed from the images in post-processing, these corrections become more difficult for highly complex samples.

X-Ray Fluorescence Spectroscopy

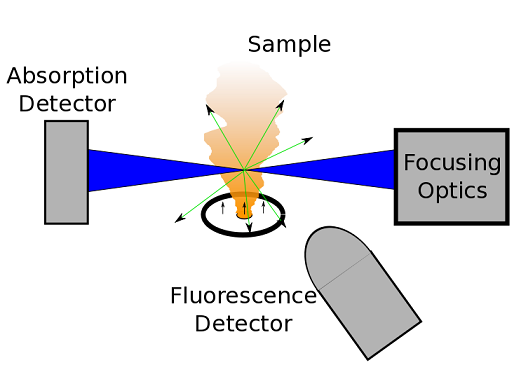

In addition to radiography, 7-BM is also equipped with a silicon drift diode detector for performing x-ray fluorescence spectroscopy. In x-ray fluorescence, an atom emits an x-ray photon after absorbing an incident x-ray photon. The energy of the emitted x-ray photon depends on the element of the atom which emitted the photon. As such, fluorescence spectroscopy is widely used for nondestructive elemental analysis.

Fluorescence has distinct advantages over radiography in certain flowfields, including element specificity, relative insensitivity to changes in beam intensity, and greater flexibility in energy range. The maximum time resolution attainable with fluorescence is significantly lower than that with radiography.
