Sample Environments: Low/High Temperature (4-800K)

Below are the ARS cryocoolers used for low and high temperature environments.

Limits for stages: θ= -1° , +21° ; χ= -45° , +90° ; Φ= -35° , +135°

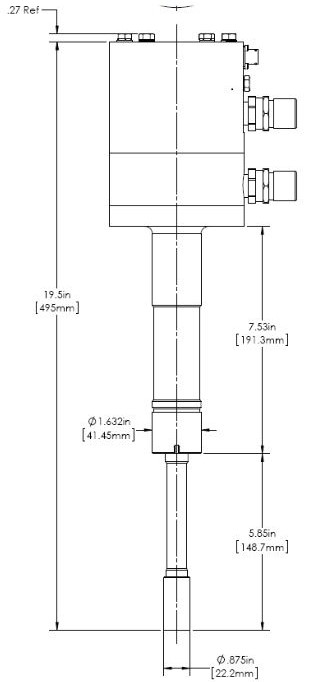

Closed cycle cryostat (ARS DE-202SG): 4.5-350 K

DE-202

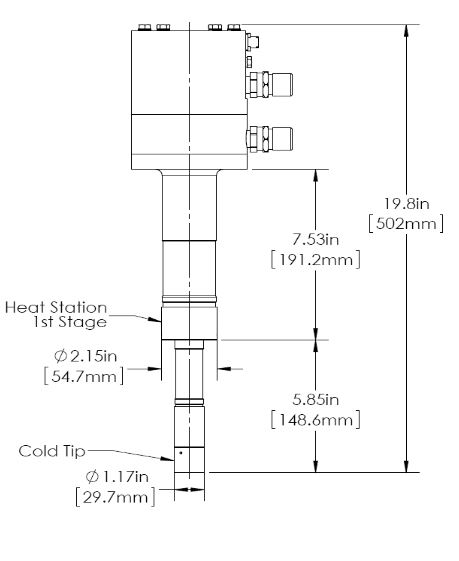

Closed cycle cryofurnace (ARS DE-204SG, 800 K interface): 7-700 K

DE-204
