uProbeX

A tool for the accurate and easy coordination of visible light microscopy scans performed on a commodity microscope with fluorescence scans performed at the APS. Allows users to acquire a fast overview of a sample on a visible light microscope, and then select a region-of-interest on the visible light image over which to acquire an elemental map without the need to first acquire a fluorescence overview image.
Description

uProbeX is a software tool that allows users and beam line staff to more easily plan and perform x-ray microscopy experiments on micro- and nano- fluorescence x-ray microscopes at the APS. First, an overview image is collected on a high-resolution visible light microscope (Leica DMXRE) with digital stages. This image is usually collected as a mosaic of smaller images that are stitched together. uProbeX reads this mosaic and displays the image along with the coordinates on the light microscope.

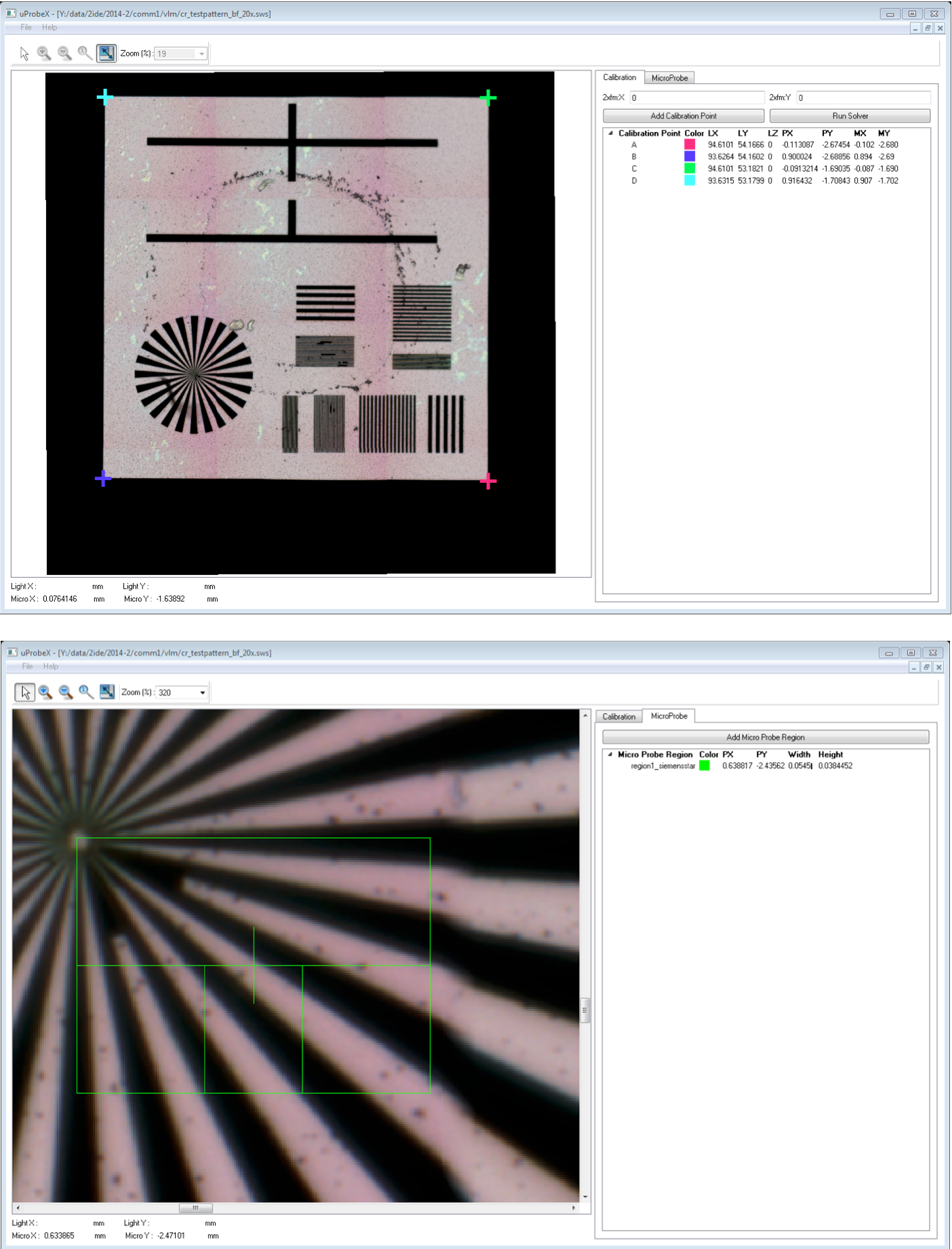

To calibrate the system, users and/or beam line staff select calibration points on a known visible light image. Coordinates on the x-ray microscope matching those points are entered. A mathematical solver then runs that generates coefficients for a transformation equation which is used subsequently.

Now users can select regions over which to perform x-ray microscope scans by drawing regions over the visible light image, or entering coordinates manually.

There are two options for calibrating and transforming coordinates from visible light microscopy space to x-ray microscope space. The first is to use the built-in Nedler-Mead numerical solver and preset equation. The second is to implement a custom pair of Python methods for the solver and coordinate transform.

uProbeX is used regularly at the APS 2-ID-B, 2-ID-D and 2-ID-E micro- and nano- fluroescence beamlines. The tool helps save users 10% - 20% of their beamtime for conventional experiments, and up to 30% for more challenging experiments.
Distribution

The tool is open source. Instructions for downloading and installing binaries for 64-bit and 32-bit Windows 7, 64-bit RHEL 6.5 can be found at https://confluence.aps.anl.gov/display/CLMFS/How+to+Install.

Coordinates from light microscope to beamline: The uProbeX software, Presentation at the InterCAT Technical Workgroup (TWG), 21 August 2014.

High-Performance Computing Software to Improve Beamline and Accelerator Efficiency, Nicholas Schwarz, Ned Arnold, Arthur Glowacki, Sinisa Veseli, Ke Yue, APS Science 2014.
Collaborators, Support & Maintenance

uProbeX was developed, and is supported and maintained by Arthur Glowacki, Ke yue, and Dariusz Jarosz of the XSD Scientific Software Engineering & Data Management group (XSD-SDM) in collaboration with Stefan Vogt, David Vine, and Sophie Charlotte Gleber of the APS Microscopy group (XSD-MIC) with funding from U.S. Department of Energy (DOE) Office of Science under Contract No. DE-AC02-06CH11357.
