Point Detectors

Point Detectors
Avalanche Photodiode (APD) PIN Diode Photomultipler Tubes (PMTs) Ion Chambers

Point detector allow user to measure x-ray beam flux, each measures a different range of flux.Ion Chambers measure the highest flux. Our calibrated PIN Diodes can measure fluxes from 104 to 1010 photons/sec. Photomultipler Tubes (PMTs) with NaI and YAP crystals can measure fluxes from 0 to 105 photons/sec. Finally, the avlanche photodiode (APD) is our fastest single photon counting detector.


Avalanche photodiode (APD)

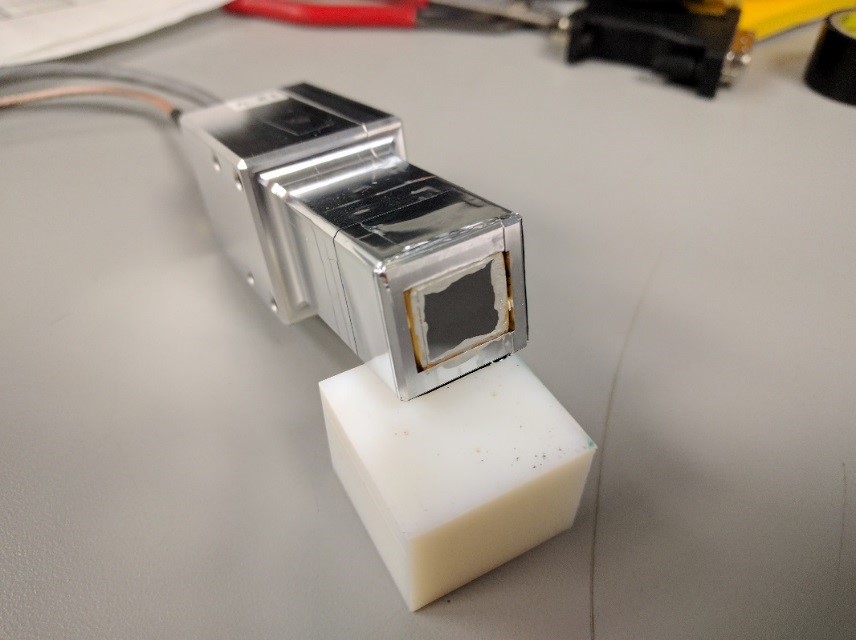

The APS Detector Pool has a silicon APD with active area of 10 x 10 mmand thickness of ~ 180 microns (Part # C30703FH from Excelitas). The APD is packaged with a multi-stage preamplifiers by ATIM in France (Contacts: Thanh Deschaux and Francis Raimbert). The APD comes with low and high voltage power supplies. The Detector Pool database model name is: "EXCELITAS_APD_10x10mm2".

APD User Guide

Return to Top

PIN Diodes

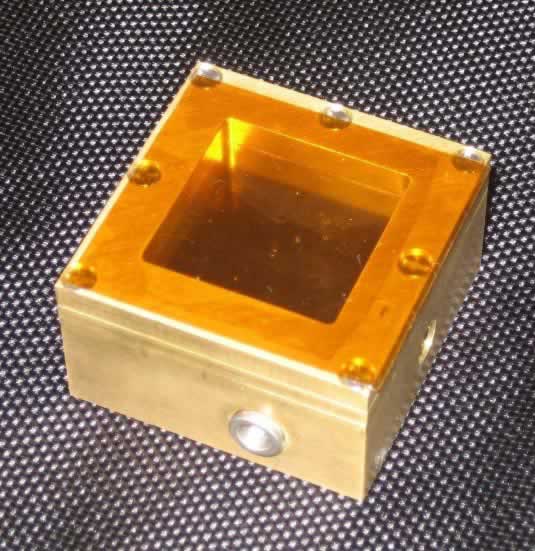

The APS Detector Pool has three calibrated and a few uncalibrated PIN diode detectors available for use.The diode is installed in a special housing with a light-tight window and a connector.
PIN Diode User Guide (ICMS)
PIN Diode User Guide
PIN Diode Calibration Report (ICMS)

Return to Top

The APS Detector Pool has two Oxford Cyberstar PMTs. One with a NaI crystal and one with YAP crystal. Additionally we have a Oxford Cyberstar X1000 and a X2000 controllers.

Return to Top

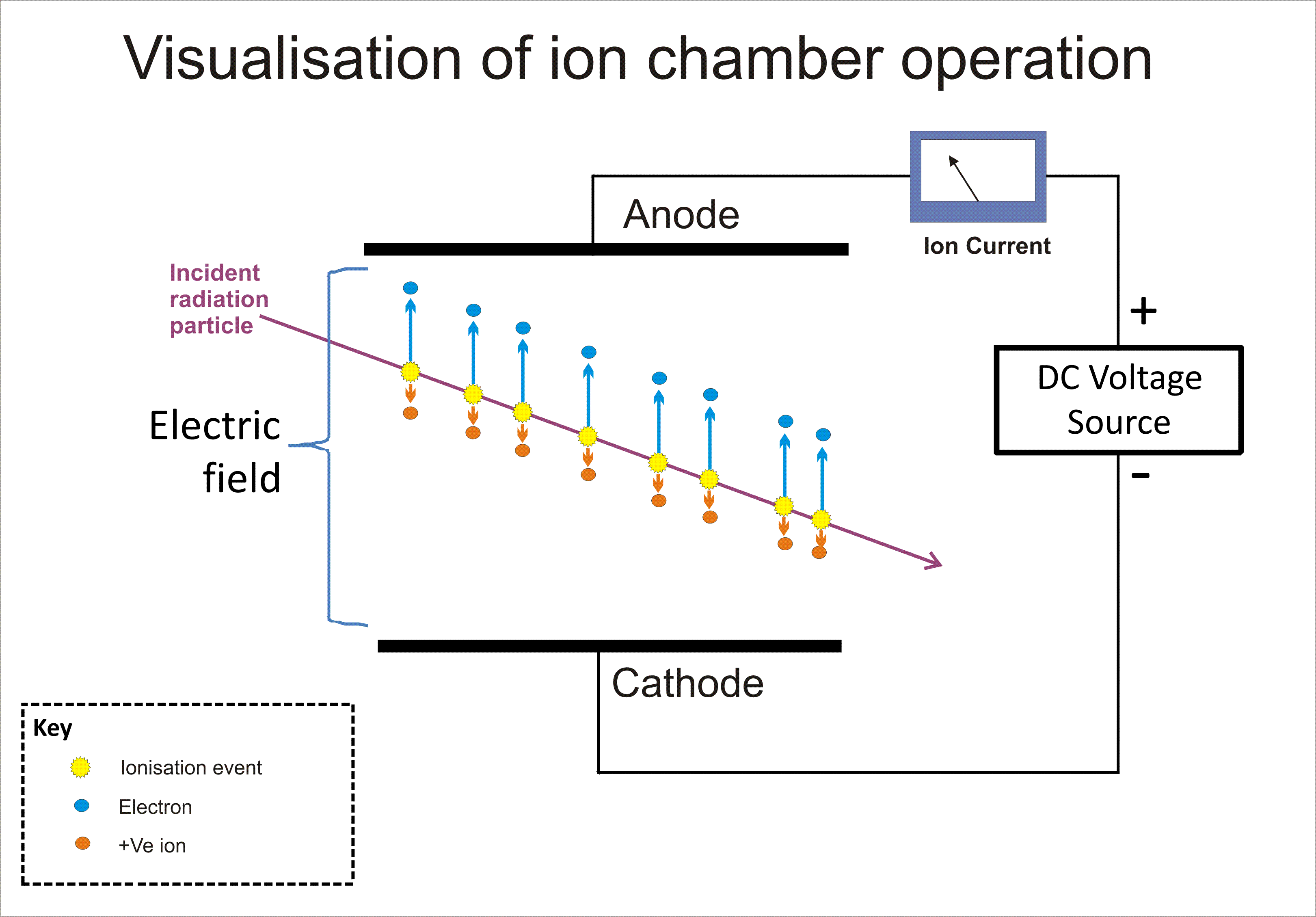

Ion Chambers
The APS Detector Pool has four ion chambers available for loan. Two of the four are split ion chambers and all four units are from Oxford.
