Most of these detector are supported by EPICS areaDetector software.
| Pilatus | |
|
The Pilatus 100K is a single photon counting hybrid pixel detector with 172 micron pixels, > 2 x 106 count rate with a 300 micron thick Silcon sensor.The Detector Pool has two units available for plus one unit on long-term loan from ASD. |
| DP Pilatus User Guide | |
| Dectris Pilatus User Guide | |
| Gating Pilatus in APS 24-bunch mode | |
| CX95 Mounting Plate for Blue & Black Models | |
| Mounting plate for Newer Pilatus 100ks | |
| EPICS areaDetector driver | |
| Dectris | |
| Mythen Strip Detector | |
|
Mythen 1K is a one dimensional silicon strip detector, it is compact in size with a high capture angle and high frame rate. |
| Datasheet | |
| Mythen 1K Manual | |
| Dectris / Mythen | |
| EPICS areaDetector Driver | |
| Pixirad-1 | |
|
Pixirad-1 is CdTe (650 microns thick) based photon counting pixel detector with 60 micron pixels on a hexagonal pattern. It has 512 x 476 pixels (i.e., 31 x 25 mm2). The detector also has two thresholds for multienergy measurements. |
| DP Pixirad User Guide | |
| EPICS areaDetector driver | |
| PiXirad | |

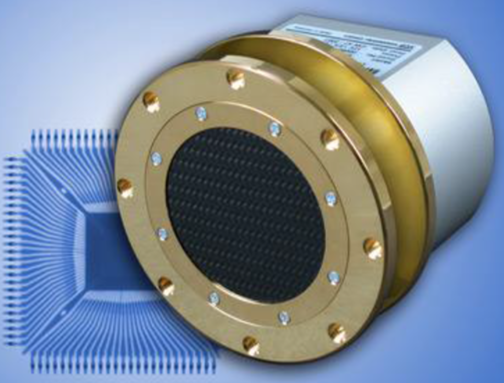

| Scint-X CCD | |
|
Scint-X CCD Detector has special structured scintillator (micromachined silicon pores filled to CsI) from Scint-X which is designed to have better spatial resolution than a standard columnar grown CsI at high-energies. It uses a 1:1 Fiber Optic Plate designed to absorb high-energy x-rays from hitting the CCD. The specs on the scintillator are: Pore spacing: 25.7 microns (hex structure); Scintillator layer thickness: 200-225 microns; Silicon substrate thickness: 500 microns; MTF: typically 40% at 10 lp/mm. The detector active area is 36 x 24 mm. The system is described in this paper from Scint-X (pdf). |
| DataSheet | |
| User Manual | |
| Scint-X | |

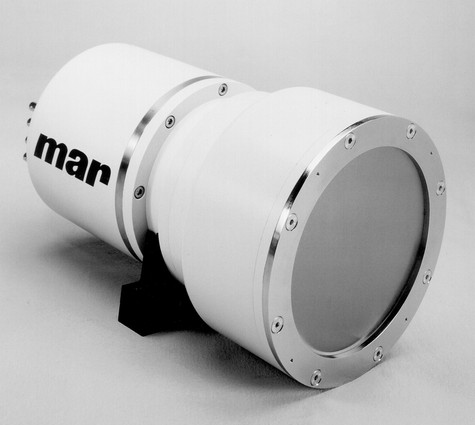

| Mar 165 CCD | |
|
The Mar165 has a 165 mm diameter detector head containing a 61 mm x 61 mm CCD sensor with 80 micron pixels at the phosphor and a frame rate ~ 0.5 Hz.The Detector Pool has three units available for loan. |
| DP Mar165 User Guide | |
| MarCCD Software Manual | |
| Notes on Frame Shift | |
| Mar165 Pump Down Procedure | |
| EPICS areaDetector driver | |
| Rayonix | |
| Lambda Si 250k | |
| The Lambda Si 250k from X-spectrum is a medipix3 based pixel array detector with 55 micron pixel size (512 x 512). Currently operates at 500 Hz and will upgraded to 2,000 Hz soon | |
| Vendor's user manual | |

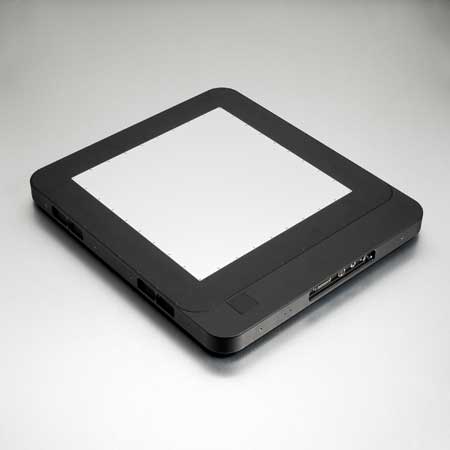

| Perkin-Elmer aSi Flat Panel | |
|
The Perkin-Elmer aSi is an amorphous silicon flat panel detector with the sensor and electronics housed in one device.It has 200 micron pixels, 2048 x 2048.Readout times range from 33-133 ms. The useful energy range is > 20 keV.Available for loan, the Detector Pool has one unit with an aluminum window and one unit with a carbon fiber window. |
| Perkin Elmer XRD1621 Manual | |
| Perkin Elmer XIS32 Software Reference | |
| Perkin Elmer HIS Software Reference | |
| DP Mount Base Print | |
| EPICS areaDetector driver | |

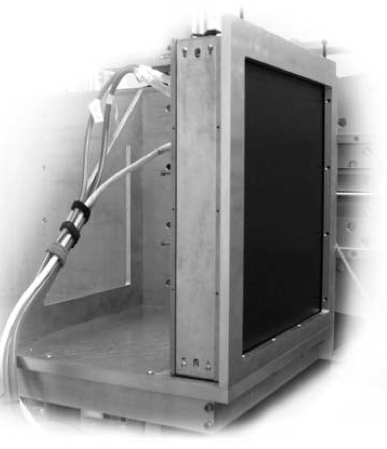

| GE aSi Flat Panel | |
|
The Ge-aSi is an amorphous silicon flat panel detector useful in the > 50 keV range.It has 200 um pixels, 2048 x 2048.Readout times range from 23-125 ms, depending on image size.The Detector Pool has one item available for loan. Sector 1 has 4 dedicated detectors (i.e., the Hydra). |
| DP GE a-Si Flat Panel Users Guide | |
| DP GE a-Si Flat Panel Users Guide (ICMS) | |
| Paper: Synchrotron Appilcations of Amorphous Silicon Flat-Panel Detector, Journal of Synchrotron Radiation, Volume 15, Part 5 (September 2008) | |
| Mar 345 Image Plate | |
|
The Mar345 is 345mm diameter image plate detector with selectable pixel size (100um or 150um) and a maximum readout time of 110 sec.The Detector Pool has two units available for loan. |
| DP Mar 345 User Guide | |
| Mar 345 Shutter Pin-Out Diagram | |
| EPICS areaDetector driver | |

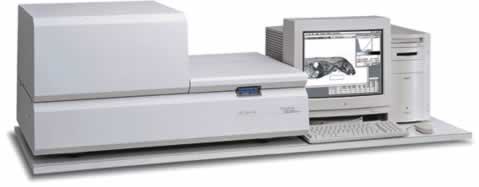

| Fuji Image Plate Reader | |
|
|
| DP Fuji Image Plate Reader User Guide | |
| Fuji Film Bio Image Analyzer BAS2500 Operations Manual | |

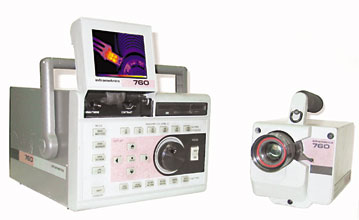

| Inframetrics 760 Camera | ||
| Inframetrics 760 IR Camera | ||
| Spectral Bandpass | 8-12um | |
| Minimum Detectable Temperature Difference | 0.1°C | |
|
Temperature Measurement Range | -20 to +400°C |
| Overall Dimensions | ||
| Scanner | 10 1/8" x 5" x 5 1/8" | |
| Control Unit | 10 1/2" x 9 3/8" x 6 1/4" | |
| Weight | ||
| Scanner | 7.5lbs | |
| Control Unit | 12.0lbs | |
| Manual | ||
