Observing Electronic Flat Bands in a 3D Pyrochlore Lattice

Three schematics that show with increasing detail triangles forming star shapes and 3D patterns followed by a blue graph with a red spot denoting electron energy.

Quantum materials are increasingly being explored for their exotic properties. A fundamental feature of these compounds is that scientists cannot employ conventional rules to describe their electronic behavior. Instead, complex quantum interactions such as electron correlations must be accounted for.

One fascinating phenomenon called an electronic flat band can occur in quantum materials with just the right geometric structure. These bands consist of many electrons with nearly the same kinetic energy, which enhances electron-electron interactions that produce unusual and technologically important behavior. Up until now flat bands were only confirmed in graphene and other 2D structures. The extension of electronic flat bands into three dimensions would significantly aid further investigation of this quantum state, with many potential applications including high-temperature superconductivity and fractionalized topological states.

In this research, scientists endeavored to create flat bands in three-dimensional materials. They did this by synthesizing calcium-nickel (CaNi2) crystals featuring a star-shaped pattern called a pyrochlore lattice. This lattice is related to the 2D hexagonal shape that has previously been shown to produce two-dimensional flat bands. The researchers detected flat bands in a three-dimensional pyrochlore lattice using sophisticated

techniques, including angle-resolved photoemission spectroscopy (ARPES) performed at the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science user facility at DOE’s Argonne National Laboratory.

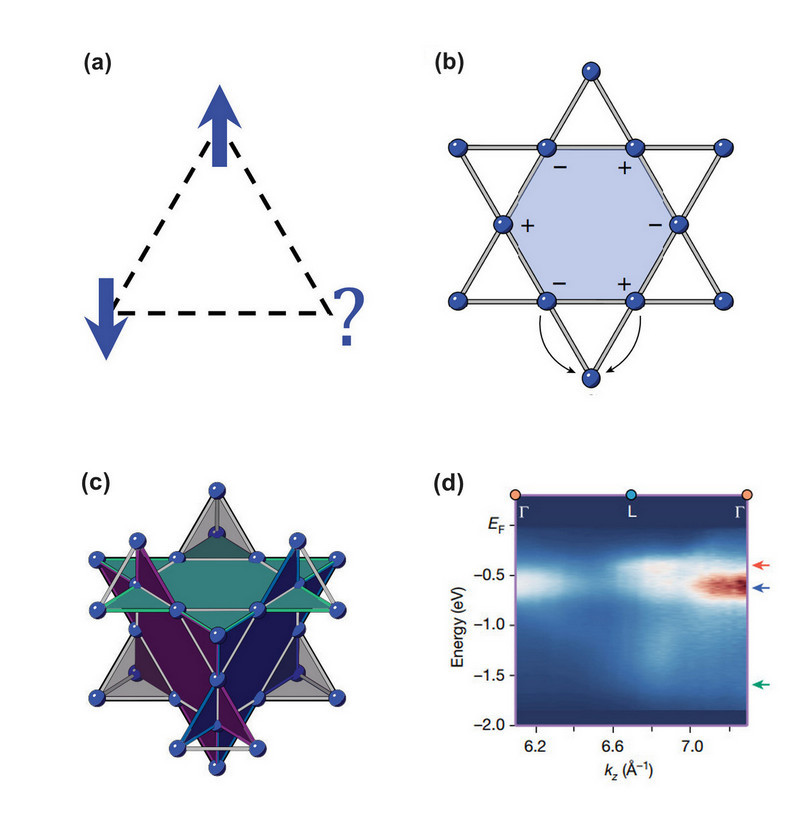

Unusual quantum behavior can be driven by geometric frustration, which only occurs for particular arrangements of the atoms composing a lattice. Figure 1a involves a triangular arrangement of three atoms with arrows indicating the spin of each atom's outermost electron. If an interaction induces the spins to point in opposite directions, as shown on the triangle’s top and left side, then the spin of the third electron is indeterminate or “frustrated” because the overall energy is the same whether the third electron spins up or down. This frustration can lead to quantum entanglements between the electrons.

The flat bands studied here arise from this geometric induced electron correlation, whereby quantum interference prevents electrons from escaping a hexagon of atoms referred to as a kagome pattern (Fig. 1b). Unlike trivially localized states like the one in Fig. 1a, these flat-band-localized states strongly overlap one another and promote quantum entanglement and correlations. While flat bands have been shown to occur in a variety of 2D materials including twisted graphene and crystalline 2D kagome lattices, producing electronic flat bands in thick crystals is significantly more challenging due to the difficulty of enforcing correlation in three dimensions. The researchers overcame these difficulties by selecting and then synthesizing pure 3D crystals of CaNi2.

The CaNi2 compound is classified as a Laves phase mineral, and it features interpenetrating kagome layers that form a pyrochlore lattice (Figure 1c). While the ARPES imaging technique can readily detect flat bands in 2D lattices, it is challenging to use on 3D crystals. This challenge was met by mirco-focusing the ARPES beams to an area around one-hundred-thousandth of a square millimeter (about 20x30 square micrometers) and aiming the beam at locally flat surfaces exposed by cleaving the crystal.

Soft (lower-energy) X-rays were utilized for the ARPES measurements performed at beamline 29-ID of the APS. Complimentary ARPES experiments were performed at DOE’s Lawrence Berkeley National Laboratory and DOE’s Brookhaven National Laboratory using high-energy ultraviolet radiation. The collective ARPES data revealed that the nickel electrons in the CaNi2 compound hosted bands that are very flat (Fig. 1d). This behavior is unusual because such bands would normally bend or “disperse” in most materials if not for the electronic correlation.

The CaNi2 samples were also probed using other experimental techniques to reveal their magnetic, thermodynamic, and other properties. Additionally, researchers synthesized another promising pyrochlore by replacing nickel with the element rhodium (Rh) and adding a small proportion of ruthenium (Ru). Thermodynamic and ARPES measurements revealed the calcium-rhodium-ruthenium pyrochlore contains the same flat bands and becomes a superconductor.

The researchers point out that the kagome structure can be realized in many types of pyrochlores besides the two examined here, as well as in non-pyrochlore compounds. This flexibility will allow scientists to synthesize custom crystals to investigate a wide range of quantum phenomena in 3D materials. – Philip Koth
