Peering Into the Past of Supercrystals

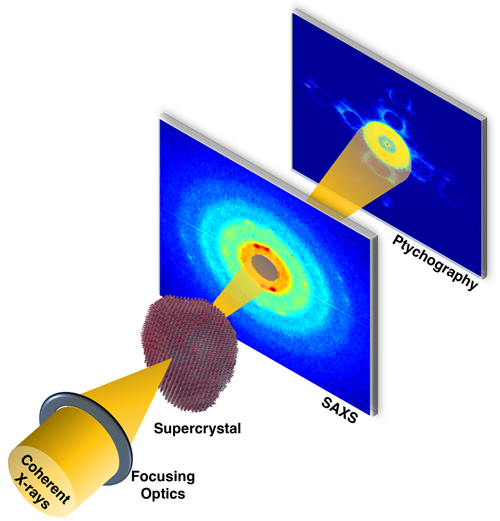

A graphic representation of X-rays striking a sample and scattering off into detectors, which display data.

Supercrystals are crystalline assemblies of colloidal nanoparticles that generally form only when the strength of attractive interparticle interactions are relatively weak. This causes nanoparticles to reversibly bind and unbind during growth to rearrange into thermodynamically preferred lattice positions. These materials represent a unique class of crystalline structures because both the particle cores and their crystal symmetries can be tuned independently, which in turn controls their resulting electronic, magnetic and optical properties.

These properties, as well as their performance in applications such as catalysis and gas sorption, can be affected by imperfections in their crystal structure. Crystal defects can also provide clues into supercrystals’ growth mechanisms. One way to reliably form supercrystals is by using DNA as a bonding agent between nanoparticles, designing complementary regions of DNA that allow particles to assemble into lattices. Building stronger interactions into these complementary regions disrupts the nanoparticle rearrangement process, a scenario thought to introduce defects.

Although studies have suggested that such defects are prevalent in DNA-assembled supercrystals, direct observation has been challenging due to a lack of experimental techniques. For example, various electron microscopy approaches suffer from limited depth into the crystal interior, the presence of artifacts, or the destruction of the sample. Using the 12-ID-C beamline at the Advanced Photon Source (APS), a U.S. Department of Energy (DOE) Office of Science user facility at DOE’s Argonne National Laboratory, researchers from Northwestern University and Argonne used a new approach: a combination of X-ray ptychography and small-angle X-ray scattering (SAXS) to view defects in DNA-assembled supercrystals. Their findings revealed new insights into the growth mechanisms of these intriguing materials.

The team built supercrystals by functionalizing nanoparticles of varying sizes, ranging between 40 and 80 nanometers, with dense shells of DNA classified as either short (about 23.8 nanometers long) or long (about 34.5 nanometers long). Mixing a set of particles with complementary DNA caused these particles to aggregate. When the researchers heated these aggregates above their DNA melting temperatures and then cooled them to room temperature, they formed crystalline assemblies with sizes ranging from one micrometer to tens of microns. They then embedded these supercrystals in silica, allowing them to be visualized using X-ray ptychography and SAXS.

These techniques showed that all the samples formed body-centered particle arrangements. Samples embedded in silica exhibited compressed face-face distances, with the lattice shrinking more or less in proportion to the length of the DNA. However, the ultimate sizes of the supercrystals increased with the size of the particles used, with smaller particles forming smaller supercrystals and vice versa.

More subtly, the length of DNA also affected the quality of the resulting supercrystals. Scanning electron microscopy showed that supercrystals assembled with long DNA strands showed better-faceted exteriors compared to those made with short DNA relative to the same core size. These data were confirmed with ptychography, which not only showed better-faceted surfaces in the long DNA samples but also attachment of smaller supercrystals on mother supercrystal surfaces in the short DNA samples, often with different crystal orientations.

Ptychography also revealed substantial interior defects in almost all the samples, including edge dislocations and domain boundaries, with samples prepared with the short DNA strands having a higher density of defects. These types of defects suggest that these DNA-assembled supercrystals grew by aggregation of smaller nanocrystals, followed by rearrangement of nanoparticles. The higher prevalence of defects in supercrystals with shorter DNA linkers appeared to be due to a higher potential for attraction, the study authors suggest, which inhibited bound particles from unbinding and rebinding into ideal positions in the crystal lattice.

This proposed mechanism was reinforced by ptycho-tomograms of supercrystals with the smallest cores. In large area views, these samples showed many small crystals connected in random directions like a necklace, with the size of each single domain smaller than those with larger cores.

Together, the researchers suggest, these findings indicate that DNA strands grafted onto nanoparticles prompt the growth of large supercrystals through the random attachment of smaller supercrystals formed through nucleation and growth, which often attach without matching lattice orientations. This discovery was made possible through this combination visualization technique. – Christy Brownlee


See: H. A. Calcaterra1, C. Y. Zheng1, S. Seifert1, Y. Yao2, Y. Jiang2, C. A. Mirkin1, J. Deng2, B. Lee2, “Hints of growth mechanism left in supercrystals,” ACS Nano 17, 16, 15999-16007 (2023)

Author affiliations: 1Northwestern University; 2Argonne National Laboratory
