The More Things Change, the More They Become the Same in Uranium-Niobium

Uranium-niobium (U-Nb) alloys, used in a variety of energy and defense applications that require high density, ductility, and good corrosion resistance, comprise a highly complex, multiphasic system with a phase diagram well-established through decades of extensive experimentation.  Such studies have closely studied the alloy's temperature-dependent phase transformation, growth kinetics, and microstructural evolution, but most of the work has focused on conditions below the monotectoid temperature (the isothermal reversible change of a solid phase to form two different solid phases during cooling) of 647° C.  Experimenters used in situ and real-time synchrotron x-ray studies at the U.S. Department of Energy’s Advanced Photon Source (APS) to investigate the intriguing realm above this temperature, where phase and compositional homogenization occurs.  Their work appeared in the Journal of Nuclear Materials.

Although the U-Nb system has been the subject of intensive study for years, relatively little attention has been given to the homogenization process above the monotectoid temperature, where a-U and g1-2 microstructures become a single-phase solid solution, gs, before melting.  However, a better understanding of the dynamics and evolution of the homogenization phenomenon may have important implications for the manufacturing processes of U-Nb alloys.

In this work, the investigators studied a U-6Nb alloy because of its particular affinity for a wide range of applications.  Time-resolved concurrent wide-angle (WAXS) and small-angle x-ray scattering (SAXS) studies were performed at the APS X-ray Science Division Materials Physics & Engineering Group’s 1-ID beamline at the APS. The studies centered on U-6Nb samples during four different heating and hold cycles for up to 50 minutes above the monotectoid temperature of 647° C, up to 750° C.

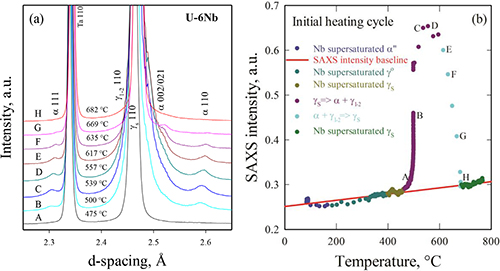

Distinct microstructures were evident in each of the cycles below the monotectoid temperature, but these began to homogenize during heating above that point.  Time-resolved in situ WAXS data revealed the homogenization process.  At first, a"® g0 ® gs reverse martensitic transformations were observed.  This was followed by decomposition into a two-phase mixture of a and g1-2 with the growth of a-U made evident by the increase in intensity of a-U diffraction peaks while the g1-2 diffraction peaks remained weak near the gs shoulder.  As the temperature of the mixture was further increased, a+g1-2 ® gs homogenization started to occur, approximately between 617° C and 635° C.  With the disappearance of a-U at 682° C, the homogenization process was complete.

It was also revealed through the peak width of the gs phase that the phase and compositional homogenization process within the volume illuminated by x-rays (0.01 mm3) was completed within 60 seconds, consistent with interdiffusion homogenization of fine lamellae structures.

The researchers also found that the comparison of integrated SAXS intensities with WAXS data yielded complementary information on the chemical segregation and phase transformation process.  For instance, the SAXS intensities revealed that a"® g0 ® gs is an athermal process under high heating rate.  The SAXS intensities also showed that the initiation temperature for the a+g1-2 ® gs homogenization process is between 617° C and 635° C.

Further investigation of the homogenization process in the alloy samples aged at different times and temperatures showed two stages with different mechanisms.  The first stage was marked with apparent thermal expansion as the lattice parameters increased with the g1-2 temperature.  This changed in the second stage with reduction of Nb content in g1-2 and SAXS intensities.  These stages appear to correspond with the a"+ g1-2 ® gs homogenization reaction.   With continued heating above 682° C, the gs phase continued to replace a-U and g1-2 until complete homogenization was achieved.  However, these pre-aged alloys showed some slight differences in the time before complete phase and compositional homogenization.  The researchers attribute these differences to several effects arising from the initial alloy microstructures, including a-U content, the bcc phase of Nb, and lamellar structures.

These experiments provide an excellent demonstration of the great effectiveness of time-resolved in situ synchrotron SAXS and diffraction studies for probing the inner workings of the important U-Nb system.  A more detailed understanding of the microstructural behavior of these alloys under various temperature and time regimes that such tools provide will allow them to be better tailored for their unique applications.  ― Mark Wolverton

See: Jianzhong Zhang1, Erik B. Watkins1*, Donald W. Brown1, Bjorn Clausen1, Peter Kenesei2, and Jun-Sang Park2, “Time-resolved phase and compositional homogenization of segregated uranium-niobium alloys above the monotectoid temperature,” J. Nucl. Mat. 564, 153673 (2022). DOI: 10.1016/j.jnucmat.2022.153673
