Researchers at the University of California, Irvine, (UCI) and four U.S. Department of Energy (DOE) Office of Science national laboratories using three DOE x-ray light source user facilities, including the Advanced Photon Source (APS), have devised a way to make lithium-ion battery cathodes without using cobalt, a mineral plagued by price volatility and geopolitical complications.
In a paper published today in the journal Nature, the scientists describe how they overcame thermal and chemical-mechanical instabilities of cathodes composed substantially of nickel – a common substitute for cobalt – by mixing in several other metallic elements.
“Through a technique we refer to as ‘high-entropy doping,’ we were able to successfully fabricate a cobalt-free layered cathode with extremely high heat tolerance and stability over repeated charge and discharge cycles,” said corresponding author Huolin Xin, UCI professor of physics & astronomy. “This achievement resolves long-standing safety and stability concerns around high-nickel battery materials, paving the way for broad-based commercial applications.”
Cobalt is one of the most significant supply chain risks threatening widespread adoption of electric cars, trucks and other electronic devices requiring batteries, according to the paper’s authors. The mineral, which is chemically suited for the purpose of stabilizing lithium-ion battery cathodes, is mined almost exclusively in the Democratic Republic of Congo under abusive and inhumane conditions.
“Electric vehicle manufacturers are eager to curtail the use of cobalt in their battery packs not only for cost reduction but to counter the child labor practices used to mine the mineral,” Xin said. “Research has also shown that cobalt can lead to oxygen release at high voltage, causing damage to lithium-ion batteries. All of this points to a need for alternatives.”
However, nickel-based cathodes come with their own problems, such as poor heat tolerance, which can lead to oxidization of battery materials, thermal runaway and even explosion. Although high-nickel cathodes accommodate larger capacities, volume strain from repeated expansion and contraction can result in poor stability and safety concerns.
The researchers sought to address these issues through compositionally complex high-entropy doping using HE-LMNO, an amalgamation of transition metals magnesium, titanium, manganese, molybdenum and niobium in the structure’s interior, with a subset of these minerals used on its surface and interface with other battery materials.
Xin and his colleagues employed an array of synchrotron x-ray diffraction, transmission electron microscopy and 3-D nanotomography instruments to determine that their zero-cobalt cathode exhibited an unprecedented volumetric change of zero during repeated use. The highly stable structure is capable of withstanding more than 1,000 cycles and high temperatures, which makes it comparable to cathodes with much lower nickel content.

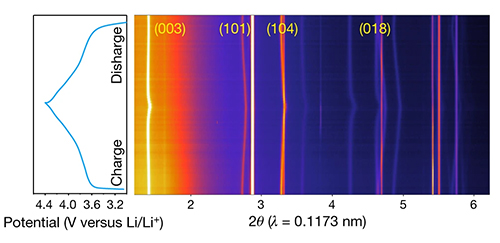

The in situ heating and charge–discharge x-ray diffraction (XRD) and ex situ XRD (Fig.1) were performed on the X-ray Science Division Structural Science Group’s beamline 11-ID-C at the Advanced Photon Source at Argonne National Laboratory. The beamline is optimized for rapid high-energy XRD at 106 keV. Hard x-ray absorption spectroscopy of transition metal ions was performed on the QAS beamline 7-BM at the DOE’s National Synchrotron Light Source II (NSLS II) at Brookhaven National Laboratory. X-ray fluorescence mapping was performed at the 5-ID SRX beamline at NSLS II. TXM experiments were conducted at beamline 18-ID FXI at NSLS II, which offers advanced capabilities for studying the morphology and oxidation states of dynamic systems in two and three dimensions with 30-nm resolution. Soft x-ray absorption including the total electron yield and fluorescence yield modes was performed at beamline 10-1 at the Stanford Synchrotron Radiation Lightsource at the SLAC National Accelerator Laboratory.
“The combination of the different methods at the DOE light sources including the NSLS II beamlines enabled the discovery of a trapping effect of oxygen vacancies and defects inside the material, which effectively prevents the crack formation in the HE-LMNO secondary particle, making this structure extremely stable during cycling,” said co-author Mingyuan Ge, a scientist at NSLS-II.
Added Xin: “Using these advanced tools, we were able to observe the dramatically increased thermal stability and zero-volumetric-change characteristics of the cathode, and we’ve been able to demonstrate extraordinarily improved capacity retention and cycle life. This research could set the stage for the development of an energy-dense alternative to existing batteries.”
He said the work represents a step toward achieving the dual goal of spurring the proliferation of clean transportation and energy storage while addressing environmental justice issues around the extraction of minerals used in batteries.
See: Rui Zhang1, Chunyang Wang1, Peichao Zou1, Ruoqian Lin2, Lu Ma2, Liang Yin3, Tianyi Li3, Wenqian Xu3, Hao Jia4, Qiuyan Li4, Sami Sainio5, Kim Kisslinger2, Stephen E. Trask3, Steven N. Ehrlich2, Yang Yang2, Andrew M. Kiss2, Mingyuan Ge2, Bryant J. Polzin3, Sang Jun Lee5, Wu Xu4, Yang Ren3, and Huolin L. Xin1*, “Compositionally complex doping for zero-strain zero-cobalt layered cathodes,” Nature, published online 21 September 2022. DOI: 10.1038/s41586-022-05115-z
Author affiliations: 1University of California, Irvine, 2Brookhaven National Laboratory, 3Argonne National Laboratory, 4Pacific Northwest National Laboratory, 5SLAC National Accelerator Laboratory
