Revealing the Source of Degradation in an Advanced Lithium-ion Battery Cathode

The durability of lithium-ion batteries depends highly on the performance of the cathode, the battery's positive electrode. An important type of lithium-ion cathode is the LMR (Lithium-and -Manganese-Rich) design for high-energy density. The well-known NMC (nickel-manganese-cobalt) cathode belongs to this group. These cathodes, which also incorporate lithium metal and oxygen, form layered crystalline structures that allow lithium ions to move in and out as the battery charges and discharges. Though LMR cathodes initially provide high voltage and power, this output steadily declines with repeated use, resulting in premature degradation of battery performance. Rapid voltage decline has been tied to oxygen loss from layered oxide cathodes, including the LMR type. To gain new insights into this oxygen release, researchers for the first time examined cathode materials at the nanoscale as well as micro- and macroscale under changing voltage conditions. These nanoscale x-ray experiments, carried out at the U.S. Department of Energy’s Advanced Photon Source (APS), revealed an ongoing buildup of strain at the smallest levels in the material's lattice. Ultimately, the nanoscale changes drive the observed oxygen release and cathode degradation. These experimental insights, published in the journal Nature, are already helping scientists develop strategies to mitigate LMR cathode voltage fade, which will result in longer-lasting lithium-ion batteries for electric vehicles and other power storage applications.

LMR cathodes have inherently high power densities that are ideal for advanced lithium-ion batteries. The LMR architecture employs two distinct compounds. For this investigation, lithium manganese oxide (Li2MnO3) and LiTMO2 were used. “TM” indicates the transition metals cobalt, nickel, and manganese.

Li2MnO3 and LiTMO2 possess very similar crystalline structures, allowing them to enmesh in alternating layers. The two compounds remain functionally distinct because their respective electrochemical activity occurs at different voltages: when one compound is lithiating or delithiating (absorbing or releasing lithium ions), the other compound is more-or-less dormant. Since Li2MnO3 and LiTMO2 absorb and release lithium ions at different voltages, internal displacements and strains are expected to occur within their combined lattice. Precisely characterizing this nanoscale strain is vital to determining its relation to the observed oxygen release associated with cathode deterioration.

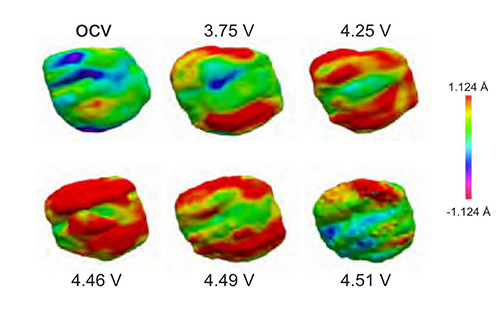

The LMR cathode created for this research consisted of innumerable tiny particles packed together, each composed of alternating Li2MnO3 and LiTMO2 domains. Figure 1 is derived from x-ray measurements of one of those particles. The images depict varying levels of lattice displacement, and therefore strain, at different voltages. Particle nano-strain was determined using Bragg coherent x-ray diffraction imaging (BCDI) performed at the X-ray Science Division (XSD) Microscopy Group’s beamline 34-ID-C at the APS, an Office of Science user facility at Argonne National Laboratory (Fig. 1). The release of oxygen from the particle was measured via differential electrochemical mass spectrometry. By correlating strain evolution with oxygen levels, the researchers endeavored to pinpoint the exact cause of oxygen loss within the particle.

The voltages indicated in Fig. 1 form two stages. Stage 1 begins with the lowest voltage (upper left corner), corresponding to no lithium-ion movement. An increased voltage (3.75 and 4.25 volts) heralds the release of lithium ions from the LiTMO2 domains, which expand as a result. By contrast, the Li2MnO3 layers hold onto their lithium ions at these voltages and resist expansion. The tension between the Li2MnO3 and LiTMO2 domains dramatically increase lattice strain. At 4.46 volts the second stage begins and the Li2MnO3 domains begin to release their lithium ions. Strain then begins to subside, and oxygen release is detected shortly thereafter.

The detailed nanoscale mapping of strain evolution indicates that oxygen release has its origins in the opposition between the swelling LiTMO2 layers and comparatively inactive Li2MnO3 layers during the first voltage stage. When this built-up stress is released in stage 2, the Li2MnO3 domains become unstable and begin to decompose, leading to oxygen release. This process results in permanent lattice distortions that eventually produce large-scale cathode deterioration.

The nanoscale BCDI results were buttressed by x-ray measurements probing the average of multiple particles in a macroscopic sample. For instance, powder diffraction measurements using high-energy x-ray diffraction (HEXRD) were performed at the XSD Structural Science Group’s beamline 11-ID-C and spectroscopic experiments at the absorption edges were carried out at the XSD Spectroscopy Group’s beamline 9-BM-B at the APS.

In response to these findings, the researchers created a modified LiTMO2/Li2MnO3 system in which the two compounds activated at around the same voltage. This modification greatly reduced the particles' internal nano-strains, thereby limiting lattice distortion and oxygen release. Research has also shown that nano-strain within a cathode particle can be inhibited by reducing the number of sub-lattices that typically appear in such particles. These innovative techniques demonstrate that addressing nano-strain is key to improved LMR cathodes.  ― Philip Koth

See: Tongchao Liu1, Jiajie Liu2, Luxi Li1, Lei Yu1, Jiecheng Diao3, Tao Zhou1, Shunning Li2, Alvin Dai1, Wenguang Zhao2, Shenyang Xu2, Yang Ren1‡, Liguang Wang1, Tianpin Wu1, Rui Qi2, Yinguo Xiao2, Jiaxin Zheng2, Wonsuk Cha1, Ross Harder1, Ian Robinson3,4, Jianguo Wen1, Jun Lu1*, Feng Pan2**, and Khalil Amine1,5,6***, “Origin of structural degradation in Li-rich layered oxide cathode,” Nature 606, 305 (9 June 2022). DOI: 10.1038/s41586-022-04689-y

Author affiliations: 1Argonne National Laboratory 2Peking University, 3University College London, 4Brookhaven National Laboratory, 5Mohammed VI Polytechnic University (UM6P), 6Stanford University Present address: City University of Hong Kong

Correspondence: * junlu@anl.gov, ** panfeng@pkusz.edu.cn, *** amine@anl.gov

The authors gratefully acknowledge support from the U.S. Department of Energy (DOE) Office of Energy Efficiency and Renewable Energy (EERE), Vehicle Technologies Office. This work was also supported by the Clean Vehicles, U.S.–China Clean Energy Research Centre (CERC-CVC2) under U.S. DOE EERE Vehicle Technologies Office. This research was also supported by the National Key R&D Program of China (2016YFB0700600), Soft Science Research Project of Guangdong Province (no. 2017B030301013) and the Shenzhen Science and Technology Research Grants (no. ZDSYS201707281026184). Work at Brookhaven National Laboratory was supported by the U.S. DOE Office of Science-Basic Energy Sciences, under contract no. DE-SC0012704. Electron microscopy was carried out at the Argonne Center for Nanoscale Materials, an Office of Science user facility supported by the U.S. Department of Energy Office of Science-Basic Energy Sciences, under contract no. DE-AC02-06CH11357. This research used resources of the Advanced Photon Source, a U.S. DOE Office of Science user facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.
