Nanostructures Get Complex with Electron Equivalents

The original Northwestern University McCormick School of Engineering news story by Mark Heiden can be read here.

The original University of Michigan “Michigan News” article can be read here.

Complex crystals that mimic metals—including a structure for which there is no natural equivalent—can be achieved with a new approach to guiding nanoparticle self-assembly. Rather than just nanoparticles that serve as “atom equivalents,” the crystals produced and interpreted by scientists at Northwestern University, the University of Michigan, and Argonne National Laboratory rely on even smaller particles that simulate electrons. The details of this research, including experiments at the U.S. Department of Energy’s Advanced Photon Source (APS), were reported in the journal Nature Materials.

“We’ve learned something fundamental about the system for making new materials,” said Northwestern’s Chad Mirkin, the George B. Rathmann Professor of Chemistry in the Weinberg College of Arts and Sciences and a co-corresponding author of the paper in Nature Materials. “This strategy for breaking symmetry rewrites the rules for material design and synthesis.”

Nanoparticles have the potential to enable new materials with properties that can be carefully designed, but one of the big challenges is making these materials self-assemble. Nanoparticles are too small and numerous to build brick by brick.

Colloidal crystals are a family of self-assembled arrays made by nanoparticles, with potential applications in photonics. Crystals that can transform light may be engineered for everything from light sensors and lasers to communications and computing.

“Using large and small nanoparticles, where the smaller ones move around like electrons in a crystal of metal atoms, is a whole new approach to building complex colloidal crystal structures,” said Sharon Glotzer, the Anthony C. Lembke Department Chair of Chemical Engineering at U-M and a co-corresponding author.

Mirkin’s team created colloidal crystals by coating metal nanoparticles with DNA to make them stick to one another. The DNA strands are self-complementary, which means they bond to one another. By tuning parameters like the length of the DNA and how densely the nanoparticles are coated, the metal nanoparticles can be “programmed” to arrange themselves in specified ways. As a result, they are called programmable atom equivalents.

However, the “atoms” in this crystal—spheres with an even coating of DNA—are the same in all directions, so they tend to build symmetric structures. To build less symmetric structures, they needed something to break the symmetry.

“Building on Chad’s prior discovery of ‘electron equivalents’ with Northwestern’s Monica Olvera De La Cruz, we explored more complex structures where control over the number of neighbors around each particle produced further symmetry-breaking,” Glotzer said.

Smaller metal spheres, with fewer DNA strands to make them less sticky, end up acting like electrons in an arrangement of larger nanoparticle “atoms.” They roved around the interior of the structure, stabilizing the lattice of large nanoparticles. Mirkin’s team varied the stickiness of the “electron” nanoparticles to get different structures, as well as changing the temperature and the ratio of nanoparticle “atoms” and “electrons.”

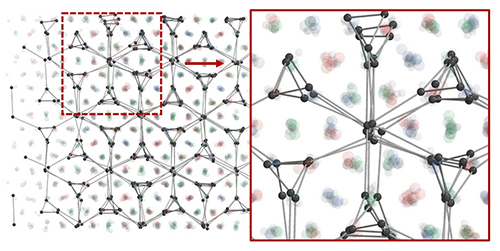

They analyzed these structures aided by small-angle x-ray scattering studies carried out at the DuPont-Northwestern-Dow Collaborative Access Team 5-ID beamline and the Argonne National Laboratory X-ray Science Division Chemical and Material Science (CMS) 12-ID-B beamline with Byeongdu Lee, a physicist at Argonne National Laboratory, CMS group leader, and a co-corresponding author on the journal article. That data revealed three complex, low-symmetry structures. One, whose twisted tunnels are known as a triple double-gyroid structure, has no known natural equivalent.

These new, low-symmetry colloidal crystals offer optical and catalytic properties that can’t be achieved with other crystals, and the symmetry-breaking method promises many more new structures. Glotzer’s team developed computer simulations to recreate the self-assembly results, helping to decipher the complicated patterns and revealing the mechanisms that enabled the nanoparticles to create them.

“We’re in the midst of an unprecedented era for materials discovery,” Mirkin said. “This is another step forward in bringing new, unexplored materials out of the sketchbook and into applications that can harness their incredible properties.”

See: Shunzhi Wang1, Sangmin Lee2, Jingshan S. Du1, Benjamin E. Partridge1, Ho Fung Cheng1, Wenjie Zhou1, Vinayak P. Dravid1, Byeongdu Lee3*, Sharon C. Glotzer2,4**, and Chad A. Mirkin1***, “The emergence of valency in colloidal crystals through electron equivalents,” Nat. Mater. Published on line 13 January 2022. DOI: 10.1038/s41563-021-01170-5

Author affiliations: 1Northwestern University, 2University of Michigan, 3Argonne National Laboratory, 4University of Michigan,

Correspondence: *, **, ***

This work was supported primarily by the Center for Bio-Inspired Energy Science, an Energy Frontier Research Center funded by the U.S. Department of Energy (DOE) Office of Science-Basic Energy Sciences (award DE-SC0000989, for synthesis and molecular dynamics simulations, C.A.M. and S.C.G.) and also by the Air Force Office of Scientific Research (award FA9550- 17-1-0348, for synthesis, spectroscopy and electron microscopy, C.A.M. and V.P.D.) and the Sherman Fairchild Foundation (for electron microscopy, C.A.M.). This work made use of the EPIC facility of Northwestern University’s NUANCE Center, which has received support from the SHyNE Resource (NSF ECCS-2025633), the IIN, and Northwestern’s MRSEC programme (NSF DMR-1720139). The DuPont-Northwestern-Dow Collaborative Access Team is supported by Northwestern University, The Dow Chemical Company, and DuPont de Nemours, Inc. Simulations were carried out using the resources at the Oak Ridge Leadership Computing Facility, which is a DOE Office of Science User Facility (supported under contract DE-AC05-00OR22725). Computational resources and services were also provided by Advanced Research Computing at the University of Michigan. This research used resources of the Advanced Photon Source, a U.S. DOE Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.
